SKU: R-CABIN (SM)

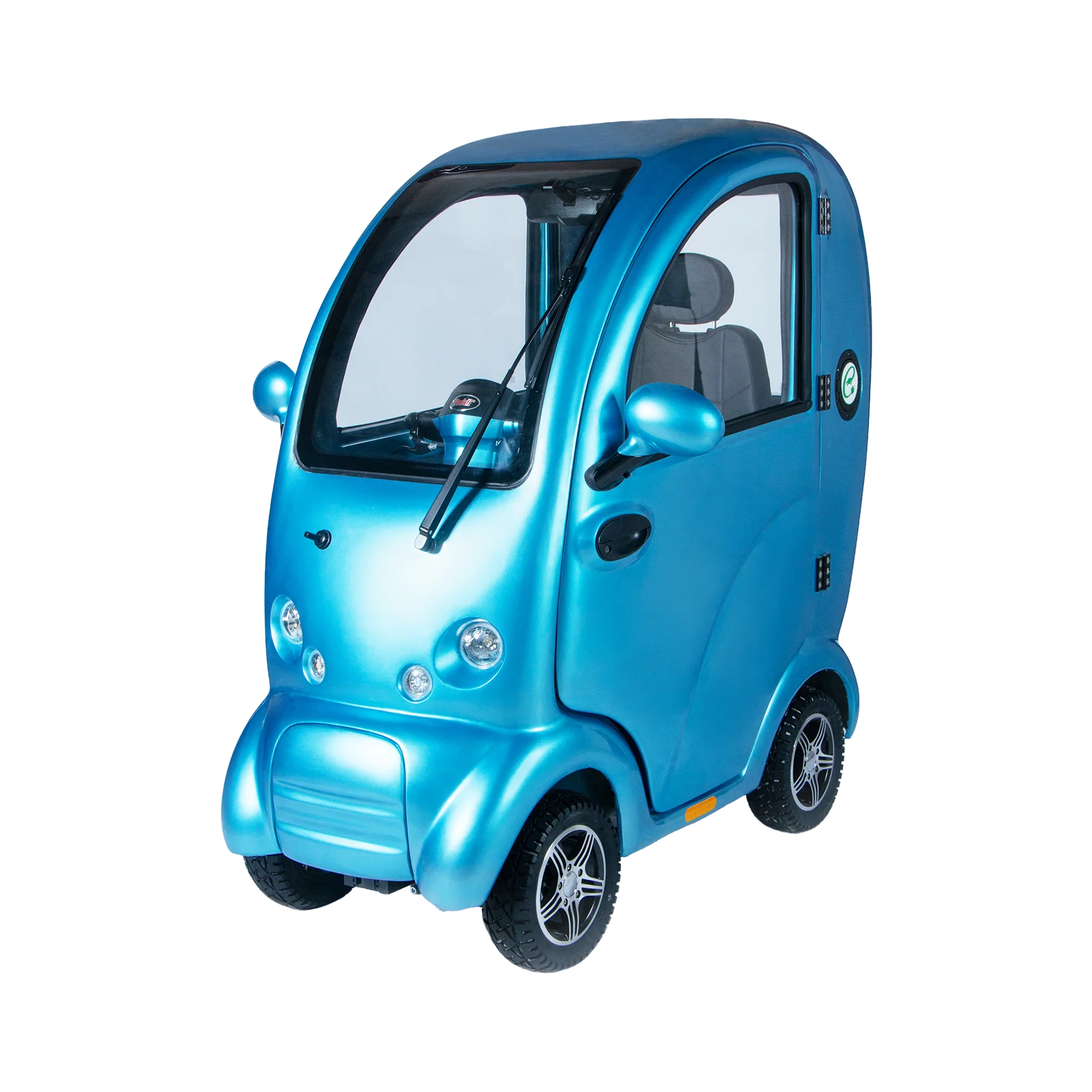

Scooter de movilidad todo clima totalmente cerrado R-CABIN (SM)

The R-CABIN (SM) redefines comfort standards in personal mobility, creating a moving private space with its unique fully enclosed design.
SKU: R-CABIN (SM)

The R-CABIN (SM) redefines comfort standards in personal mobility, creating a moving private space with its unique fully enclosed design. Powered by a 1400W efficient motor, it delivers smooth and reliable power output, easily handling daily road gradients. Equipped with dual 12V 75AH battery packs, it provides a practical 45km range, perfectly meeting daily needs like shopping and commuting.

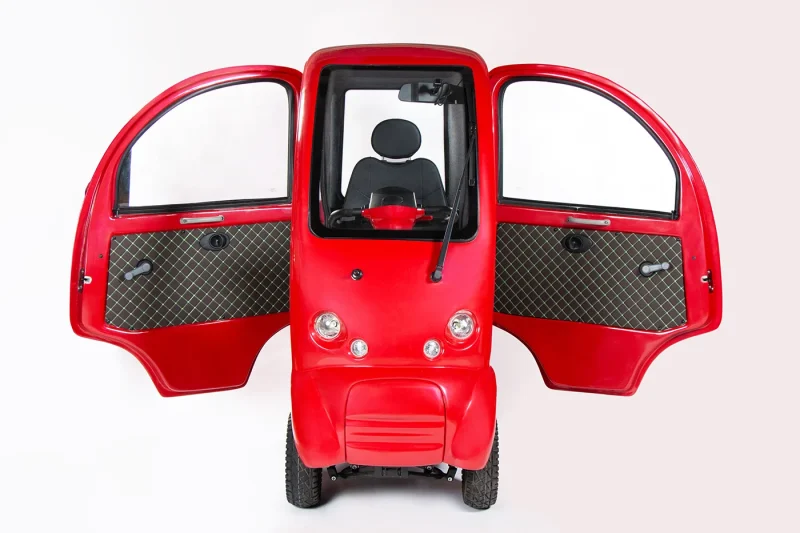

The standout feature is its fully enclosed body structure, effectively shielding you from wind, rain, dust, and noise, ensuring composed and dignified travel in any weather condition. The 5.5-inch smart display, integrated into the enclosed control panel, clearly shows riding data. The electromagnetic brake system combined with the optional cornering deceleration function safeguards your journey.

The interior space is thoughtfully designed with a well-arranged single seat ensuring riding comfort. Optional heated handlebars further enhance the driving experience, while the GPS tracking with SOS emergency call system (optional) adds extra peace of mind to your travels. Whether for rainy day trips, cold weather outings, or daily commutes requiring more privacy, the R-CABIN (SM) offers a considerate and comprehensive mobility solution.

Autonomía
55 km
Velocidad máx
15 km/h
Motor
1400 W
Max loading weight
210 kg
Lead-acid Battery as Standard.
Lithium Battery System Options.
Battery Options: Charger Options:
60ah x2 = 120ah
75ah x2 = 150ah
24V 12A
24V 15A
Color

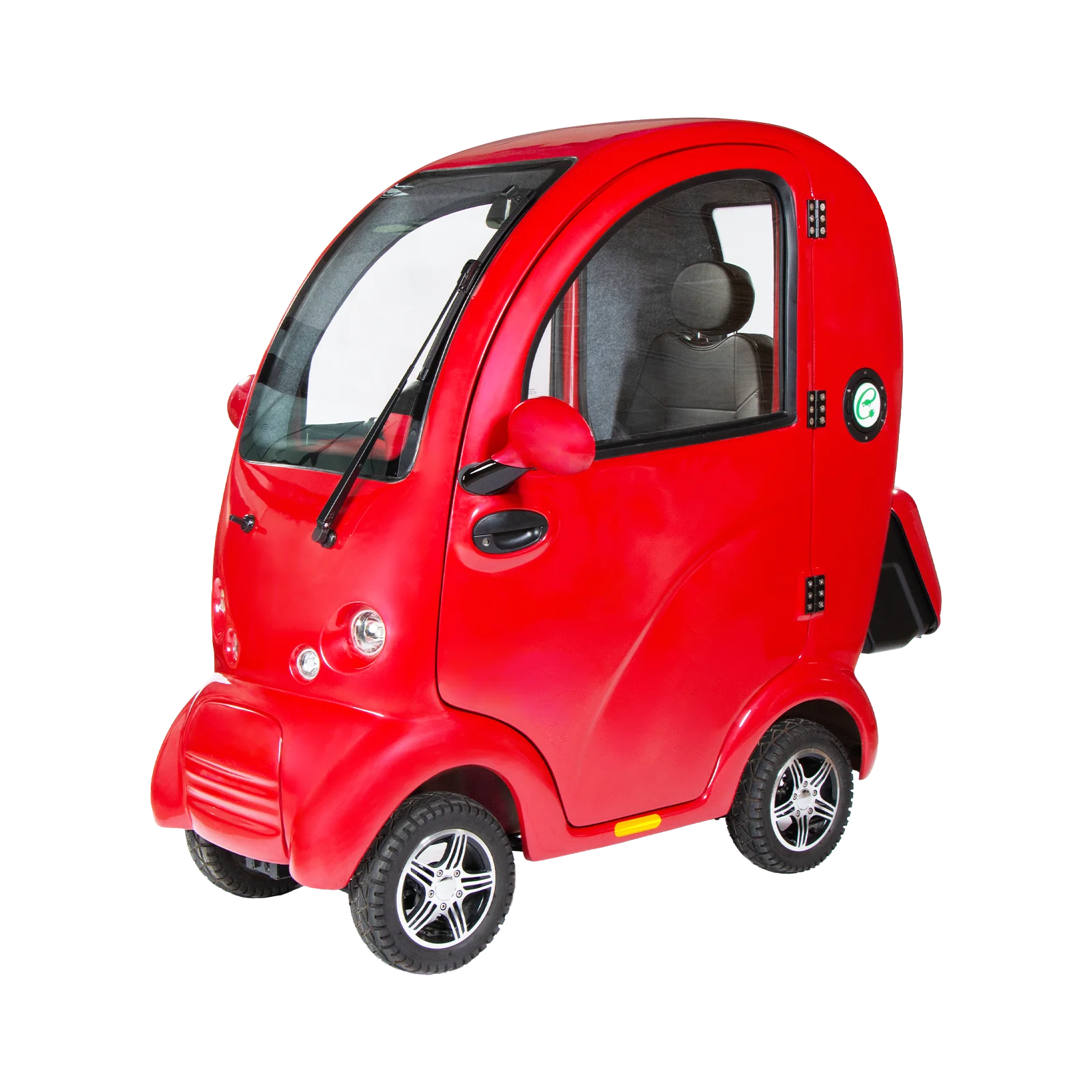

Red

Light Blue

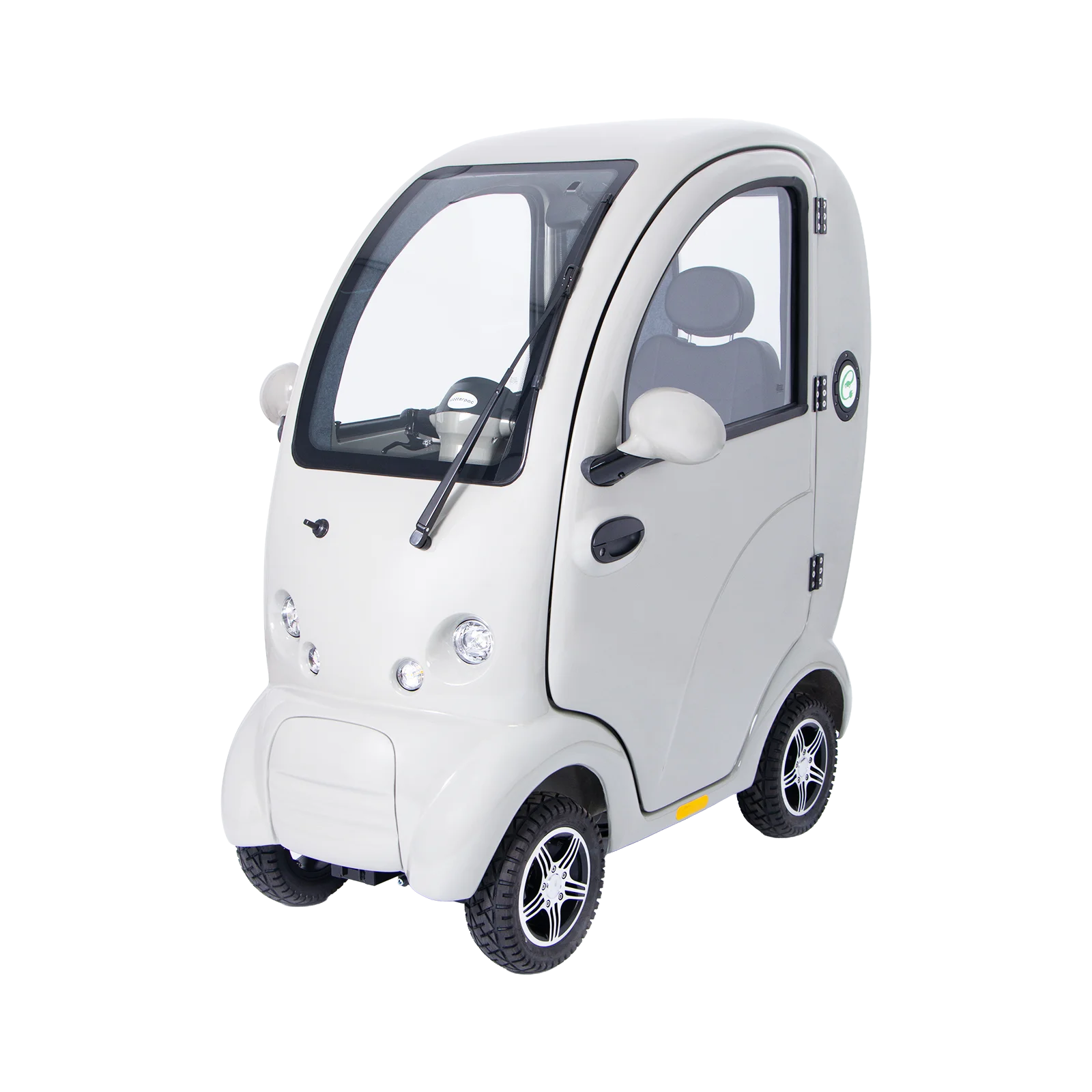

Stone Grey

Custom

Funciones innovadoras

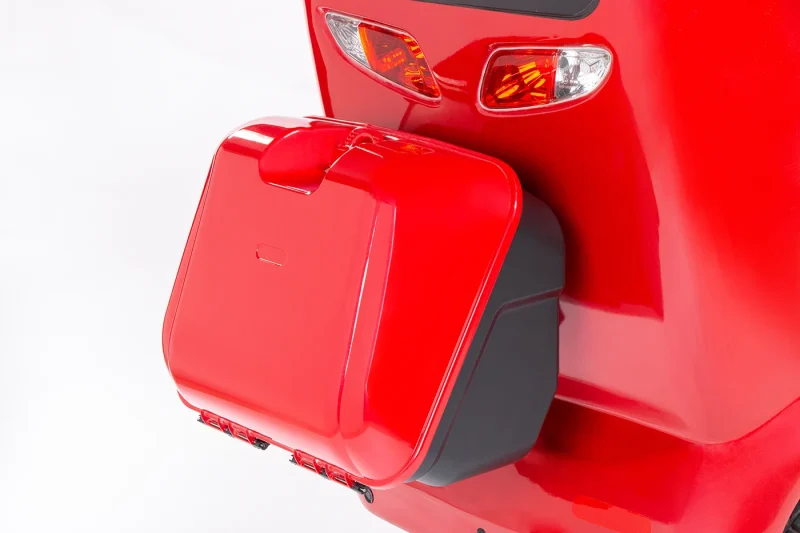

Rear lockable box

Store your sporting gear or essentials with the rear mounted lockable storage box.

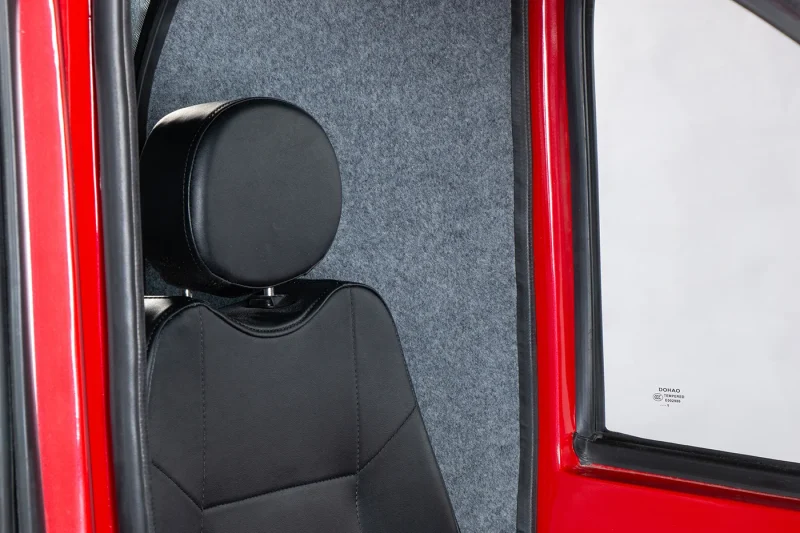

Luxury heated captain seat

Crafted with durable, easy clean fabric, featuring three adjustable warmth settings.

Heasted handlebars

The industry-first heated handlebars for mobility scooters, with three adjustable warmth settings.

Cornering deceleration system

Speed automatically reduces during cornering to ensure safe turning.

GPS Tracking + SOS emergency call

Supports GPS positioning, tracking, geofencing and one-touch emergency call for help.

Reversing camera

Auto-activated in reverse gear, providing real-time rear view to avoid obstacles.

Standard seatbelt

Standard safety seatbelt to secure passengers during travel for enhanced riding safety.

Optional lithium battery system

60ahx2=120ah, charger 24V 12A
75ahx2=150ah, charger 24V 15A

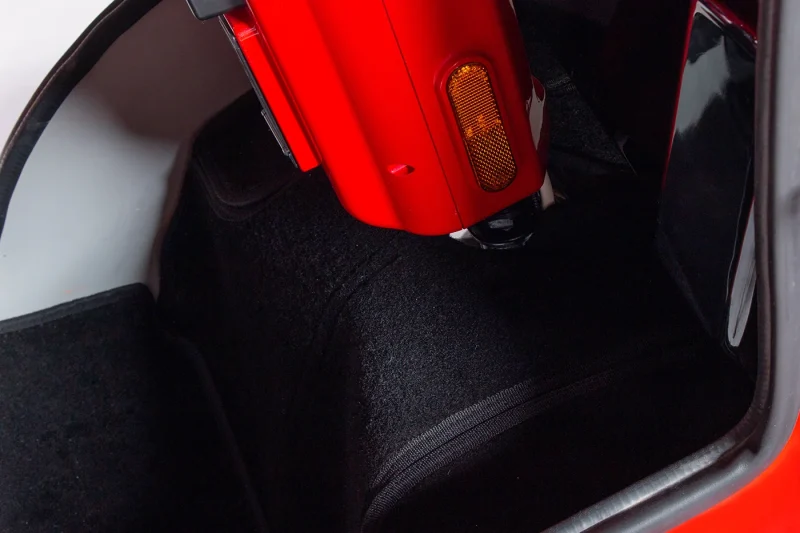

Detalles del producto

Parámetros técnicos

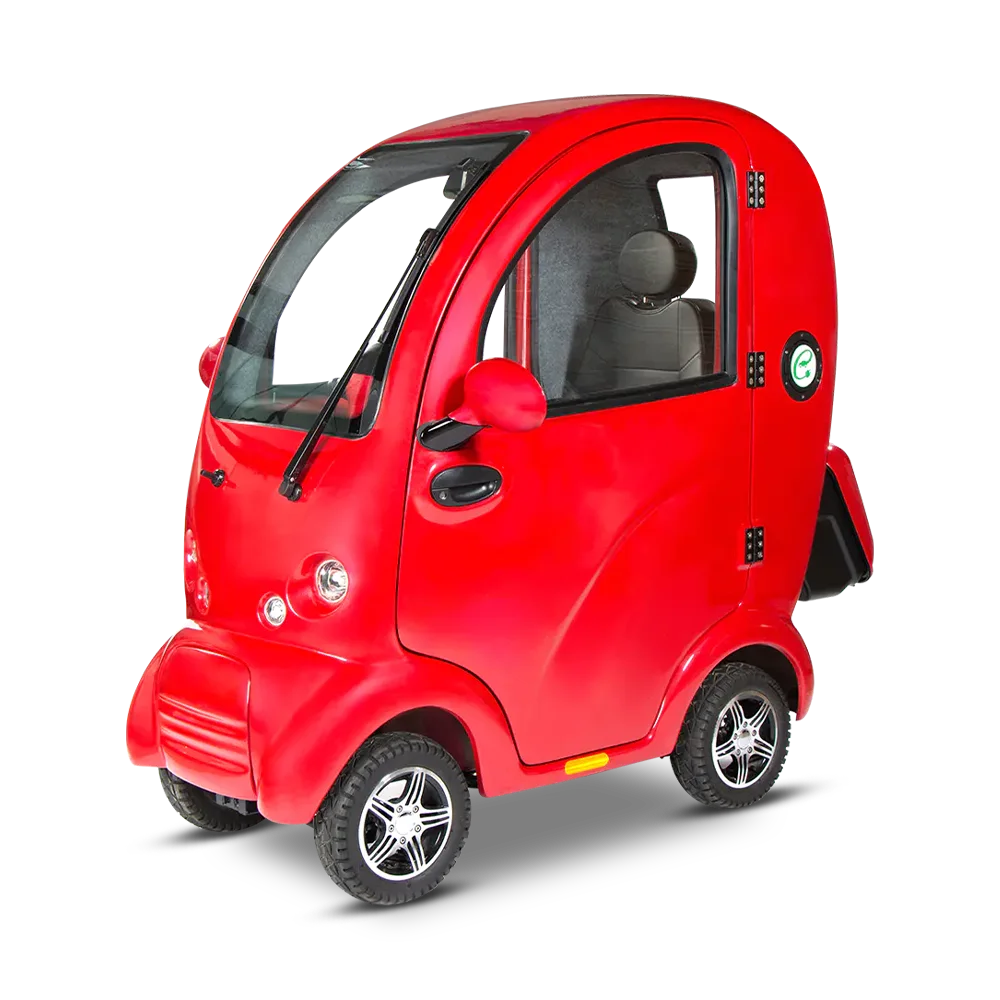

CABIN-X9
Model No R-CABIN (SM)
Power unit 1400W
Controller 200A
Dimension 1620x800x1400mm
Weight capacity 210kg
Battery (Lead-acid) 110AH/12×2
Charger 24V 10A
Battery (Lithium) 60AHx2/24V
Charger 24V 15A
Front tyre 14”
Rear tyre 14”
Cruising range (lead-acid) 55km
Cruising range (lithium) 65km
Max speed 15km/h
Max climbing grade
(Según el terreno y el peso del usuario)
12°
Turning Radius 2300mm

Preguntas antes de pedir

In general, if you use your mobility scooter very often then we recommend to charge it when the battery level drops to 30% .

Si usa el scooter con poca frecuencia, cárguelo al menos una vez por semana. Esto ayuda a evitar el envejecimiento prematuro de las celdas. Una carga correcta garantiza la vida útil de la batería y los kilómetros de autonomía por carga.

Sí, las baterías son extraíbles. Se necesitan dos baterías por scooter: solo retire el asiento y la tapa de la batería para instalar o quitar las baterías.

Sí, las baterías de litio están disponibles como opción.

Nuestra capacidad mensual puede alcanzar las 3000 unidades.

Los períodos de garantía varían según los componentes; contáctenos para más información.

En general, 5 años para el chasis principal, 2 años para el transaxle y el controlador, 1 año para las baterías…

En general, 30 días para contenedor 20GP y 35-40 días para 40HQ.

Los scooters de movilidad se embalan normalmente en caja de cartón ondulado con palé de madera.

A detachable wooden case is also available.

Sí, tenemos amplia experiencia en proyectos OEM/ODM.
